<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Interchange' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='IndexedTriangleStripSet.x3d'/>
<meta name='description' content='An example of the use of the IndexedTriangleStripSet node.'/>
<meta name='created' content='22 May 2006'/>
<meta name='modified' content='20 October 2019'/>
<meta name='creator' content='Leonard Daly and Don Brutzman'/>
<meta name='reference' content=' https://X3dGraphics.com '/>
<meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='rights' content='Copyright 2006, Daly Realism and Don Brutzman'/>
<meta name='subject' content=' X3D book, X3D graphics, X3D-Edit, http://www.x3dGraphics.com '/>
<meta name='identifier' content=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter13GeometryTrianglesQuadrilaterals/IndexedTriangleStripSet.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

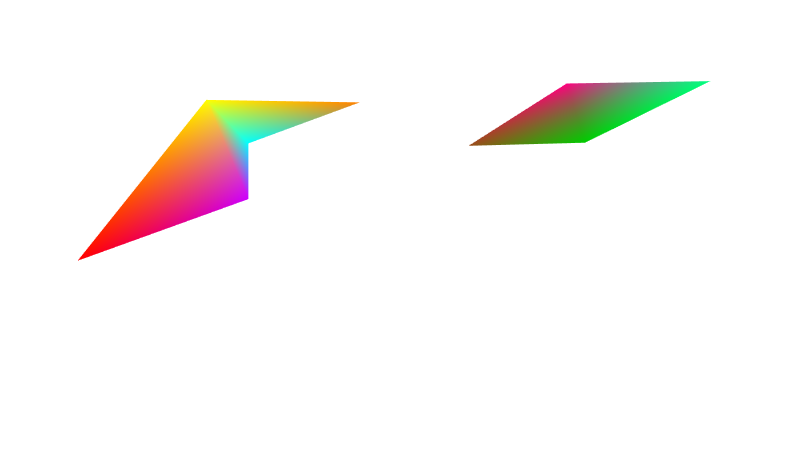

Index for Viewpoint image : Viewpoint_1

-->
<Scene>

<WorldInfo title='IndexedTriangleStripSet.x3d'/>
<Viewpoint description='IndexedTriangleStripSet view' orientation='0 -1 0 0.07' position='-0.06 1.4 11.24'/>
<Background skyColor='1 1 1'/>
<Shape>

<IndexedTriangleStripSet ccw='true' colorPerVertex='true' index='9 10 11 12 13 -1 14 15 16 17 -1' normalPerVertex='true' solid='false' containerField='geometry'>

<Coordinate point='-4 1 3 -2 2 1.5 -3 4 0.5 -2 3 1.5 0 4 0.0 2 3 1.5 5 5 -2.5 4 3 1.5 6 4 2.0 -4 1 3 -2 2 1.0 -3 4 0.0 -2 3 1.0 0 4 0.0 2 3 1.0 5 5 -2.0 4 3 1.5 6 4 2.0 0 -2 4 1 -3 3.5 1.5 -1.5 3 0 -1 2 -.5 0 2.5 -1.5 1 3 -2 0 3.5 -3 -2 2 -3 -4 3 2 -4 -2 0 -3 -.5 1.3 -1.5 -1 4 -2 -1.5 4.2 -4.2 -1 3 -6 -.5'/>
<Color color='0 .8 0 0 1 1 1 0 0 1 .5 0 .8 0 1 1 1 0 .6 .3 .1 1 0 .5 0 1 .5 1 0 0 .8 0 1 1 1 0 0 1 1 1 .5 0 .6 .3 .1 1 0 .5 0 .8 0 0 1 .5'/>

</IndexedTriangleStripSet>

</Shape>

</Scene>

</X3D>
<!--
