<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='titlecontent='TextLengthMaxExtent.x3d'/>
<meta name='descriptioncontent='Simple Text node, illustrating length array and maxExtent field'/>
<meta name='creatorcontent='Don Brutzman'/>
<meta name='createdcontent='25 January 2009'/>
<meta name='modifiedcontent='20 October 2019'/>

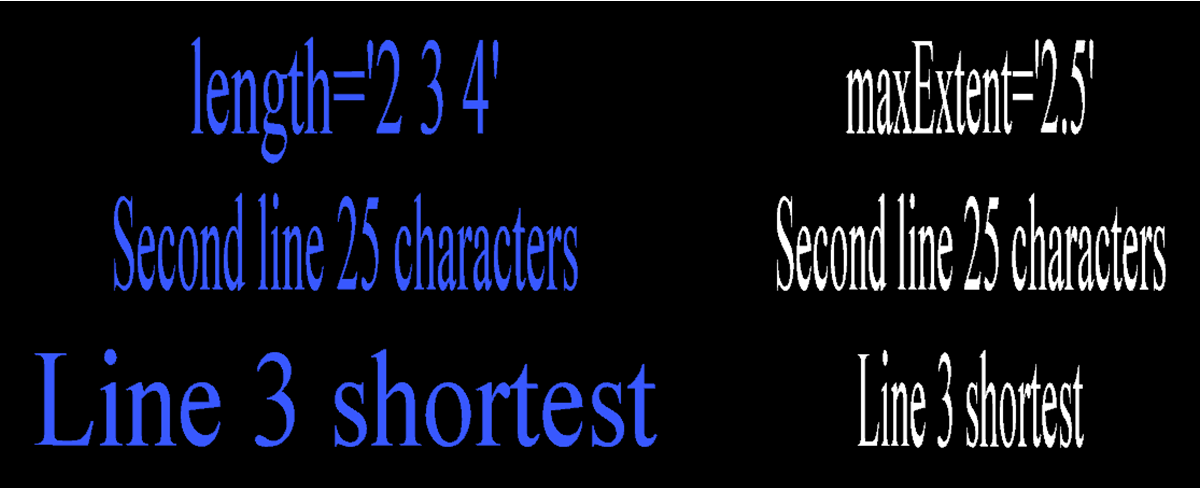

<meta name='referencecontent='TextLengthMaxExtent.png'/>
<meta name='rightscontent='Copyright (c) Don Brutzman and Leonard Daly, 2005'/>
<meta name='identifiercontent=' https://X3dGraphics.com/examples/X3dForWebAuthors/Chapter02GeometryPrimitives/TextLengthMaxExtent.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

Index for DEF nodes : BlueMaterial, CenteredFontStyle, LengthText, maxExtentText

Index for Viewpoint images : Viewpoint_1, Viewpoint_2
-->
<Scene>
<WorldInfo title='TextLengthMaxExtent.x3d'/>
<Viewpoint description='Default Viewposition='0 0 6'/>
<Viewpoint description='Book Viewposition='0.89 -1.11 2.33'/>
<Transform translation='-2 0 0'>
<Shape>
<Text DEF='LengthTextlength='2 3 4string='"length='2 3 4'" "Second line 25 characters" "Line 3 shortest"'>
<FontStyle DEF='CenteredFontStylejustify='"MIDDLE" "MIDDLE"'/>
</Text>
<Appearance>
<Material DEF='BlueMaterialdiffuseColor='0.219608 0.345098 1'/>
</Appearance>
</Shape>
</Transform>
<Transform translation='2 0 0'>
<Shape>
<Text DEF='maxExtentTextmaxExtent='2.5string='"maxExtent='2.5'" "Second line 25 characters" "Line 3 shortest"'>
<FontStyle USE='CenteredFontStyle'/>
</Text>
<Appearance>
<Material/>
</Appearance>
</Shape>
</Transform>
</Scene>
</X3D>
<!--

Index for DEF nodes : BlueMaterial, CenteredFontStyle, LengthText, maxExtentText

Index for Viewpoint images : Viewpoint_1, Viewpoint_2
-->

<!-- Color key: <X3dNode DEF='idName' field='value'/> matches <XmlElement DEF='idName' attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources and X3D Scene Authoring Hints. -->
