RoundedRectangle2D.x3d (X3dToXhtml listing)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Interchange' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='RoundedRectangle2D.x3d'/>
<meta name='description' content='RoundedRectangle2D shows and IndexedFaceSet shape for a flat RoundedRectangle.'/>
<meta name='created' content='8 November 2014'/>
<meta name='modified' content='20 October 2019'/>
<meta name='reference' content='RoundedRectanglePrimitives.x3d'/>
<meta name='reference' content='RoundedRectangleComparison.x3d'/>
<meta name='reference' content='RoundedRectangleDesign.vsd'/>
<meta name='reference' content='RoundedRectangleDesign.png'/>
<meta name='reference' content='RoundedRectangleDesign.svg'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='reference' content=' https://en.wikipedia.org/wiki/Squircle '/>
<meta name='reference' content=' https://en.wiktionary.org/wiki/roundrect '/>
<meta name='info' content='Development of this scene added new features to X3D-Edit.'/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/RoundedRectangle2D.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

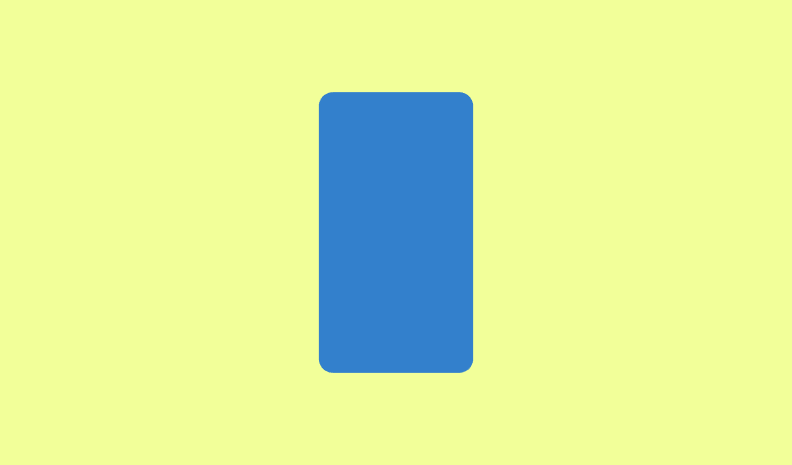

Index for Viewpoint image : Viewpoint_1

-->
<Scene>

<WorldInfo title='RoundedRectangle2D.x3d'/>
<Background skyColor='0.95 1 0.6'/>
<Viewpoint description='RoundedRectangle2D example' position='0 0 4'/>
<Shape>

<IndexedFaceSet creaseAngle='6.28' solid='false' coordIndex='0 1 2 3 0 -1 0 14 15 1 0 -1 1 25 26 2 1 -1 2 36 37 3 2 -1 3 47 4 0 3 -1 0 4 5 6 7 8 9 10 11 12 13 14 0 -1 1 15 16 17 18 19 20 21 22 23 24 25 1 -1 2 26 27 28 29 30 31 32 33 34 35 36 2 -1 3 37 38 39 40 41 42 43 44 45 46 47 3 -1'>

<Coordinate point='0.450 0.900 0.000 0.450 -0.900 0.000 -0.450 -0.900 0.000 -0.450 0.900 0.000 0.450 1.000 0.000 0.466 0.999 0.000 0.481 0.995 0.000 0.495 0.989 0.000 0.509 0.981 0.000 0.521 0.971 0.000 0.531 0.959 0.000 0.539 0.945 0.000 0.545 0.931 0.000 0.549 0.916 0.000 0.550 0.900 0.000 0.550 -0.900 0.000 0.549 -0.916 0.000 0.545 -0.931 0.000 0.539 -0.945 0.000 0.531 -0.959 0.000 0.521 -0.971 0.000 0.509 -0.981 0.000 0.495 -0.989 0.000 0.481 -0.995 0.000 0.466 -0.999 0.000 0.450 -1.000 0.000 -0.450 -1.000 0.000 -0.466 -0.999 0.000 -0.481 -0.995 0.000 -0.495 -0.989 0.000 -0.509 -0.981 0.000 -0.521 -0.971 0.000 -0.531 -0.959 0.000 -0.539 -0.945 0.000 -0.545 -0.931 0.000 -0.549 -0.916 0.000 -0.550 -0.900 0.000 -0.550 0.900 0.000 -0.549 0.916 0.000 -0.545 0.931 0.000 -0.539 0.945 0.000 -0.531 0.959 0.000 -0.521 0.971 0.000 -0.509 0.981 0.000 -0.495 0.989 0.000 -0.481 0.995 0.000 -0.466 0.999 0.000 -0.450 1.000 0.000'/>

</IndexedFaceSet>
<Appearance>

<Material diffuseColor='0.2 0.5 0.8'/>

</Appearance>

</Shape>

</Scene>

</X3D>
<!--

Index for Viewpoint image : Viewpoint_1

-->
