<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='ExtrusionEdgeCases.x3d'/>
<meta name='description' content='Scene incorporating extrusion edge cases'/>
<meta name='creator' content='Roy Walmsley'/>
<meta name='created' content='29 January 2016'/>
<meta name='modified' content='20 October 2019'/>
<meta name='reference' content=' https://www.web3d.org/wiki/index.php/Extrusion_Edge_Cases '/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/ExtrusionEdgeCases.x3d '/>
<meta name='generator' content='XML Spy, http://www.altova.com'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5

-->
<Scene>

<WorldInfo title='ExtrusionEdgeCases.x3d'/>
<Viewpoint description='Extrusion Edge Cases' position='10 5 50'/>
<Transform translation='2 10 0'>

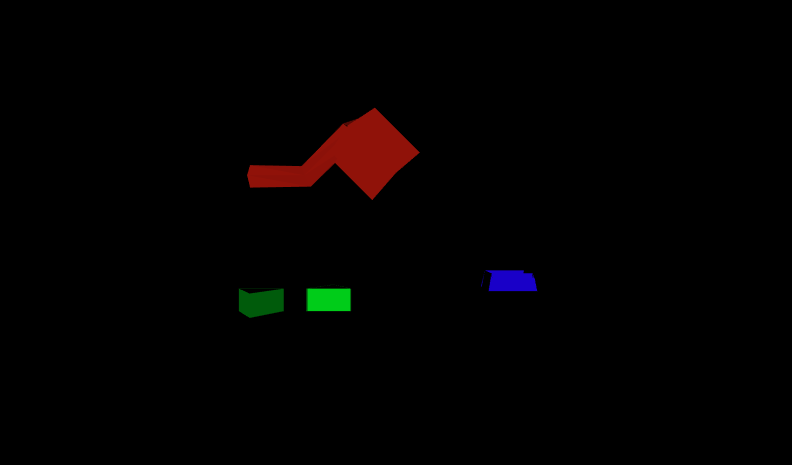

<Viewpoint description='Extrusion Edge Case 1' position='2 0 20'/>
<Shape>

<Appearance>

<Material diffuseColor='0.8 0.1 0.05'/>

</Appearance>
<Extrusion crossSection='-1 0 0 1 1 0 -1 0' scale='1 1 1 1 1 1 2 2 3 3 3 3' spine='-5 0 0 0 0 0 4 4 0 4 4 0 4 4 0 8 0 0'/>

</Shape>

</Transform>
<Transform scale='2 2 2' translation='-2 -2 0'>

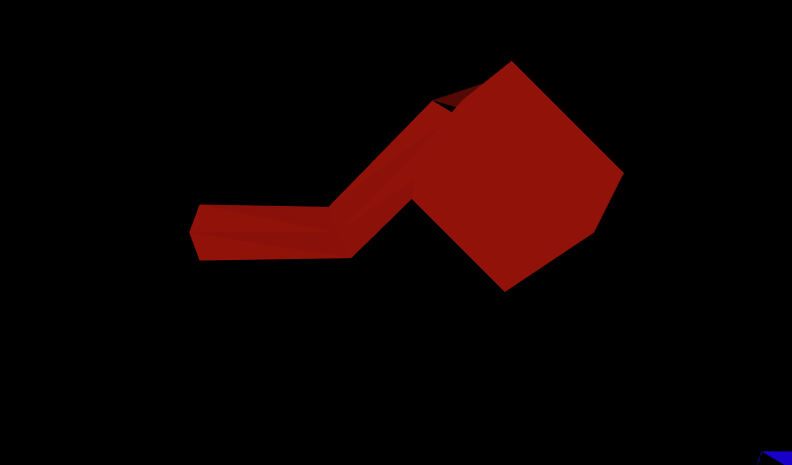

<Viewpoint description='Extrusion Edge Case 2a' position='0 0 6'/>
<Shape>

<Appearance>

<Material diffuseColor='0 0.8 0.1'/>

</Appearance>
<Extrusion crossSection='-1 0 0 2 1 0 -1 0' solid='false'/>

</Shape>

</Transform>
<Transform scale='2 2 2' translation='4 -2 0'>

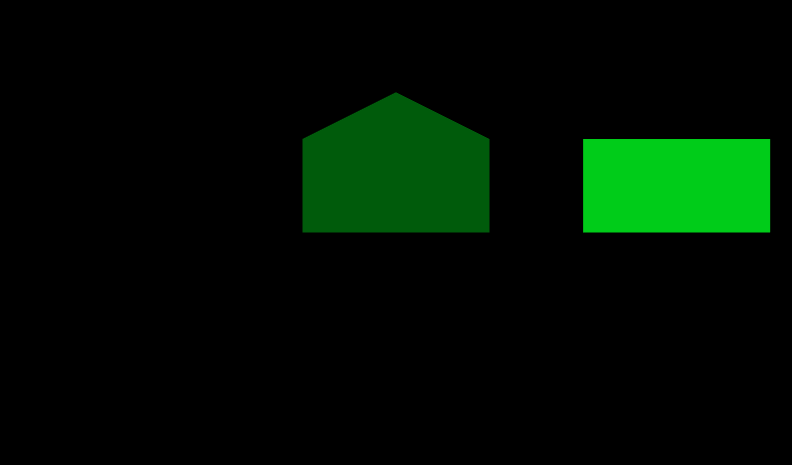

<Viewpoint description='Extrusion Edge Case 2b' position='0 0 4'/>
<Shape>

<Appearance>

<Material diffuseColor='0 0.8 0.1'/>

</Appearance>
<Extrusion crossSection='-1 0 0 2 1 0 -1 0' solid='false' spine='0 1 0 0 0 0'/>

</Shape>

</Transform>
<Transform scale='1.5 1.5 1.5' translation='20 0 0'>

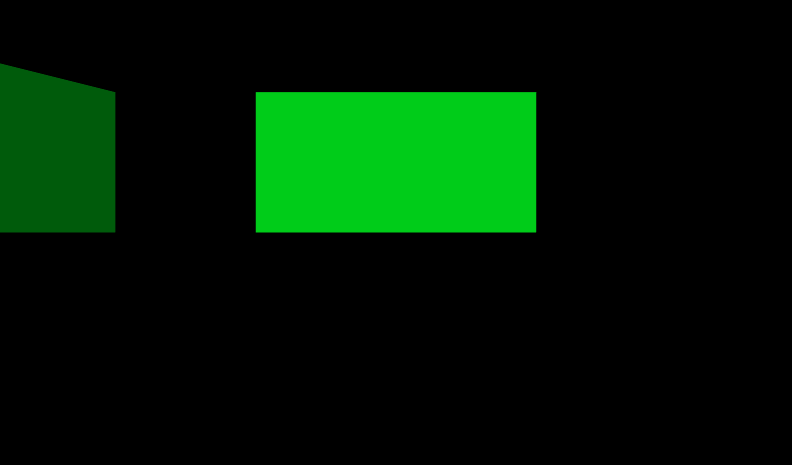

<Viewpoint description='Extrusion Edge Case 3' position='0 0 6'/>
<Shape>

<Appearance>

<Material diffuseColor='0.1 0 0.8'/>

</Appearance>
<Extrusion beginCap='false' endCap='false' scale='1 1 1.2 1.2 1.4 1.4' solid='false' spine='0 0 0 0 1 0 0 0 0'/>

</Shape>

</Transform>

</Scene>

</X3D>
<!--
