RotationCalculatorExample.x3d (X3dToXhtml listing)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">

<X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>

<head>

<meta name='title' content='RotationCalculatorExample.x3d'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='created' content='30 December 2015'/>
<meta name='modified' content='20 October 2019'/>
<meta name='description' content='Demonstrate composition of rotation values using X3D-Edit RotationCalculator.'/>
<meta name='drawing' content=' https://savage.nps.edu/X3D-Edit/images/RotationCalculator.png '/>
<meta name='reference' content=' ../HumanoidAnimation/RotationTests.x3d'/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/Animation/RotationCalculatorExample.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>

</head>
<!--

Index for DEF nodes : AxisLinesShape, CenterRotationYaxis45Degrees, ComposedRotation, CubeWithLabeledSides, InnerRotationZaxis-30degrees, LeftSide, OuterRotationXaxis135degrees, RightSide, TextAppearance

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3

-->
<Scene>

<WorldInfo title='RotationCalculatorExample.x3d'/>
<Background skyColor='0.8 0.8 0.9'/>
<NavigationInfo/>

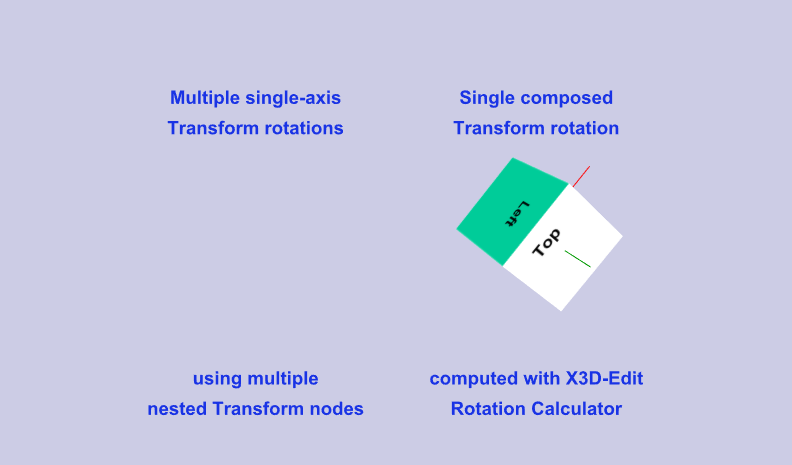

<Viewpoint description='Rotation Calculator Example' position='0 0 12'/>

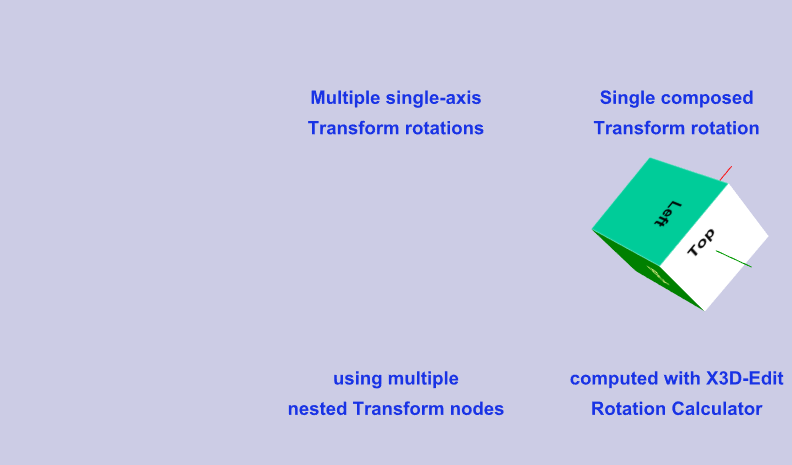

<Viewpoint description='Left side direct view' position='-3 0 12'/>
<Viewpoint description='Right side direct view' position='3 0 12'/>
<Transform DEF='LeftSide' translation='-3 0 0'>

<Transform DEF='OuterRotationXaxis135degrees' rotation='1 0 0 2.356194'>

<Transform DEF='CenterRotationYaxis45Degrees' rotation='0 1 0 0.785398'>

<Transform DEF='InnerRotationZaxis-30degrees' rotation='0 0 1 -0.523599'>

<Inline DEF='CubeWithLabeledSides'
url=' "../GeometricShapes/CubeWithLabeledSides.x3d" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/CubeWithLabeledSides.x3d" "../GeometricShapes/CubeWithLabeledSides.wrl" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/CubeWithLabeledSides.wrl" '>

<MetadataString name='profile' value='"Interchange"' containerField='metadata'/>

</Inline>
<Shape DEF='AxisLinesShape'>

<IndexedLineSet colorPerVertex='false' colorIndex='0 1 2' coordIndex='0 1 -1 0 2 -1 0 3 -1'>

<Coordinate point='0 0 0 1.78 0 0 0 1.78 0 0 0 1.78'/>
<Color color='1 0 0 0 0.6 0 0 0 1'/>

</IndexedLineSet>
<Appearance>

<Material diffuseColor='0.9 0.9 0.9'/>

</Appearance>

</Shape>

</Transform>

</Transform>

</Transform>
<Transform translation='0 3 0'>

<Shape>

<Text string='"Multiple single-axis" "Transform rotations"'>

<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>

</Text>
<Appearance DEF='TextAppearance'>

<Material diffuseColor='0.1 0.2 0.9'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='0 -3 0'>

<Shape>

<Text string='"using multiple" "nested Transform nodes"'>

<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>

</Text>
<Appearance USE='TextAppearance'/>

</Shape>

</Transform>

</Transform>
<Transform DEF='RightSide' translation='3 0 0'>

<Transform DEF='ComposedRotation' rotation='0.87262 0.40202 0.27735 2.24592'>

<Inline USE='CubeWithLabeledSides'/>
<Shape USE='AxisLinesShape'/>

</Transform>
<Transform translation='0 3 0'>

<Shape>

<Text string='"Single composed" "Transform rotation"'>

<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>

</Text>
<Appearance USE='TextAppearance'/>

</Shape>

</Transform>
<Transform translation='0 -3 0'>

<Shape>

<Text string='"computed with X3D-Edit" "Rotation Calculator"'>

<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>

</Text>
<Appearance USE='TextAppearance'/>

</Shape>

</Transform>

</Transform>

</Scene>

</X3D>
<!--
