<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<meta name='title' content='BoxSwitch.x3d'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='created' content='30 December 2015'/>
<meta name='modified' content='20 October 2019'/>
<meta name='description' content='Demonstrate simple Switch animation by sequencing through a set of Box nodes that are each covered by a different ImageTexture.'/>
<meta name='MovingImage' content='BoxSwitch.mp4'/>
<meta name='reference' content=' ../GeometricShapes/CubeWithLabeledSides.x3d'/>
<meta name='drawing' content=' ../GeometricShapes/images/CubeSideImages.pdf'/>
<meta name='drawing' content=' ../GeometricShapes/images/CubeSideImages.vsd'/>
<meta name='identifier' content=' https://x3dgraphics.com/examples/X3dForAdvancedModeling/Animation/BoxSwitch.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
Index for DEF nodes : BoxSwitcher, CenterFacingOrientationInterpolator, CircularPathPositionInterpolator, Clock, OrbitingView, Sequencer, UnitBox
Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, OrbitingView
-->
<Scene>
<WorldInfo title='BoxSwitch.x3d'/>
<Background skyColor='0.8 0.8 0.9'/>
<NavigationInfo/>
<!-- ROUTE information for BoxSwitcher node:  [from Sequencer.value_changed to whichChoice ] -->
 <Switch DEF='BoxSwitcher' whichChoice='-1'>
<Shape>
<Box DEF='UnitBox'/>
<Appearance>
<ImageTexture
  url=' "../GeometricShapes/images/RedImage.png" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/images/RedImage.png" '/>
</Appearance>
</Shape>
<Shape>
<Box USE='UnitBox'/>
<Appearance>
<ImageTexture
  url=' "../GeometricShapes/images/GreenImage.png" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/images/GreenImage.png" '/>
</Appearance>
</Shape>
<Shape>
<Box USE='UnitBox'/>
<Appearance>
<ImageTexture
  url=' "../GeometricShapes/images/TurquoiseImage.png" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/images/TurquoiseImage.png" '/>
</Appearance>
</Shape>
<Shape>
<Box USE='UnitBox'/>
<Appearance>
<ImageTexture
  url=' "../GeometricShapes/images/YellowImage.png" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/images/YellowImage.png" '/>
</Appearance>
</Shape>
<Shape>
<Box USE='UnitBox'/>
<Appearance>
<ImageTexture
  url=' "../GeometricShapes/images/WhiteImage.png" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/images/WhiteImage.png" '/>
</Appearance>
</Shape>
<Shape>
<Box USE='UnitBox'/>
<Appearance>
<ImageTexture
  url=' "../GeometricShapes/images/GreyImage.png" "https://x3dgraphics.com/examples/X3dForAdvancedModeling/GeometricShapes/images/GreyImage.png" '/>
</Appearance>
</Shape>
</Switch>
<!-- Animated Box -->
<!-- ROUTE information for Clock node:  [from fraction_changed to Sequencer.set_fraction ] [from fraction_changed to CircularPathPositionInterpolator.set_fraction ] [from fraction_changed to CenterFacingOrientationInterpolator.set_fraction ] -->
 <TimeSensor DEF='Clock' cycleInterval='12' loop='true'/>
<!-- ROUTE information for Sequencer node:  [from Clock.fraction_changed to set_fraction ] [from value_changed to BoxSwitcher.whichChoice ] -->
 <IntegerSequencer DEF='Sequencer' key='0 0.1667 0.3333 0.5 0.6667 0.8333 1' keyValue='0 1 2 3 4 5 0' containerField='children'/>
<ROUTE fromNode='Clock' fromField='fraction_changed' toNode='Sequencer' toField='set_fraction'/>
<ROUTE fromNode='Sequencer' fromField='value_changed' toNode='BoxSwitcher' toField='whichChoice'/>
<!-- ROUTE information for OrbitingView node:  [from CircularPathPositionInterpolator.value_changed to position ] [from CenterFacingOrientationInterpolator.value_changed to orientation ] -->
 <Viewpoint DEF='OrbitingView' description='Orbiting view' orientation='0 1 0 -1.57' position='-8 0 0'/>
<!-- Animated Viewpoint, orbiting about the origin -->
<!-- ROUTE information for CircularPathPositionInterpolator node:  [from Clock.fraction_changed to set_fraction ] [from value_changed to OrbitingView.position ] -->
 <PositionInterpolator DEF='CircularPathPositionInterpolator' key='0 0.02778 0.05556 0.08333 0.11111 0.13889 0.16667 0.19444 0.22222 0.25 0.27778 0.30556 0.33333 0.36111 0.38889 0.41667 0.44444 0.47222 0.5 0.52778 0.55556 0.58333 0.61111 0.63889 0.66667 0.69444 0.72222 0.75 0.77778 0.80556 0.83333 0.86111 0.88889 0.91667 0.94444 0.97222 1' keyValue='0 0 8 1.389 0 7.878 2.736 0 7.518 4 0 6.928 5.142 0 6.128 6.128 0 5.142 6.928 0 4 7.518 0 2.736 7.878 0 1.389 8 0 0 7.878 0 -1.389 7.518 0 -2.736 6.928 0 -4 6.128 0 -5.142 5.142 0 -6.128 4 0 -6.928 2.736 0 -7.518 1.389 0 -7.878 0 0 -8 -1.389 0 -7.878 -2.736 0 -7.518 -4 0 -6.928 -5.142 0 -6.128 -6.128 0 -5.142 -6.928 0 -4 -7.518 0 -2.736 -7.878 0 -1.389 -8 0 -0 -7.878 0 1.389 -7.518 0 2.736 -6.928 0 4 -6.128 0 5.142 -5.142 0 6.128 -4 0 6.928 -2.736 0 7.518 -1.389 0 7.878 0 0 8'/>
<ROUTE fromNode='Clock' fromField='fraction_changed' toNode='CircularPathPositionInterpolator' toField='set_fraction'/>
<ROUTE fromNode='CircularPathPositionInterpolator' fromField='value_changed' toNode='OrbitingView' toField='position'/>
<!-- ROUTE information for CenterFacingOrientationInterpolator node:  [from Clock.fraction_changed to set_fraction ] [from value_changed to OrbitingView.orientation ] -->
 <OrientationInterpolator DEF='CenterFacingOrientationInterpolator' key='0 0.3333 0.6667 1' keyValue='0 1 0 0 0 1 0 2.094395 0 1 0 4.18879 0 1 0 0'/>
<ROUTE fromNode='Clock' fromField='fraction_changed' toNode='CenterFacingOrientationInterpolator' toField='set_fraction'/>
<ROUTE fromNode='CenterFacingOrientationInterpolator' fromField='value_changed' toNode='OrbitingView' toField='orientation'/>
<!-- Additional Viewpoints -->

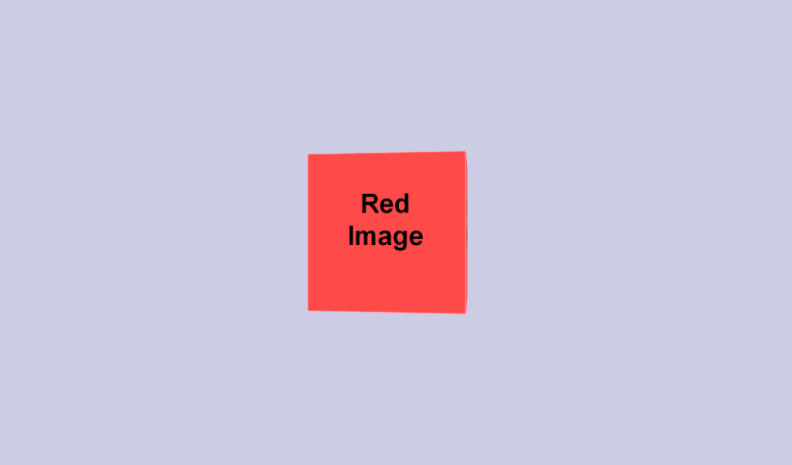

<Viewpoint description='Front view' orientation='0 1 0 1.57' position='8 0 0'/>

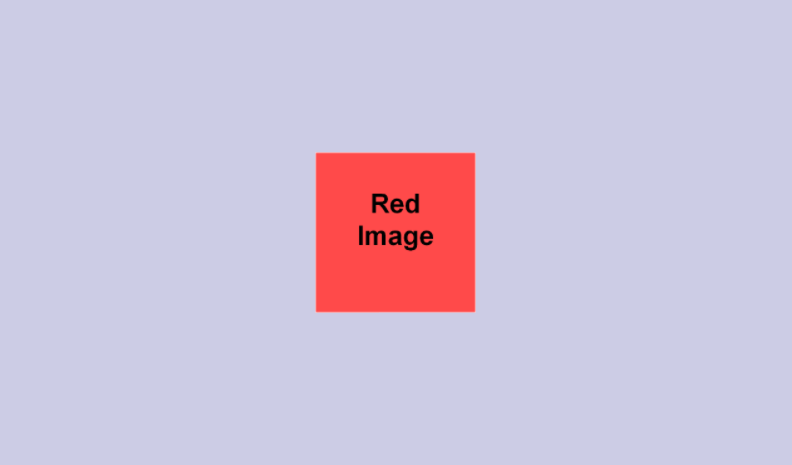

<Viewpoint description='Back view' orientation='0 1 0 -1.57' position='-8 0 0'/>

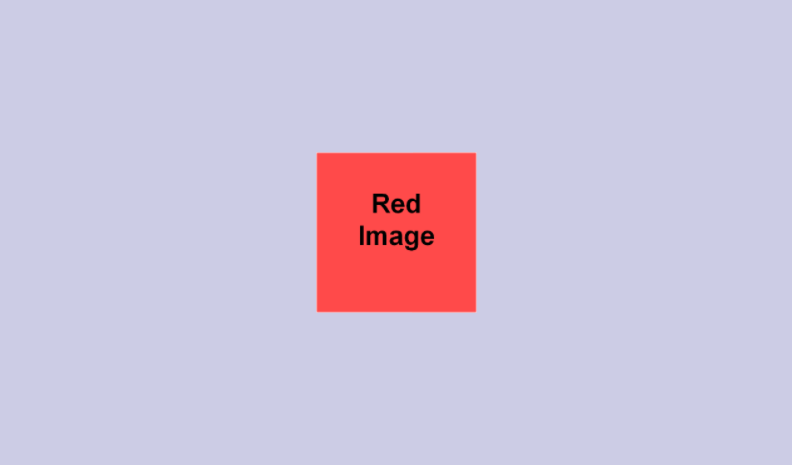

<Viewpoint description='Left view' position='0 0 8'/>
<Viewpoint description='Right view' orientation='0 1 0 3.1416' position='0 0 -8'/>
<Viewpoint description='Top view' orientation='1 0 0 -1.57' position='0 8 0'/>

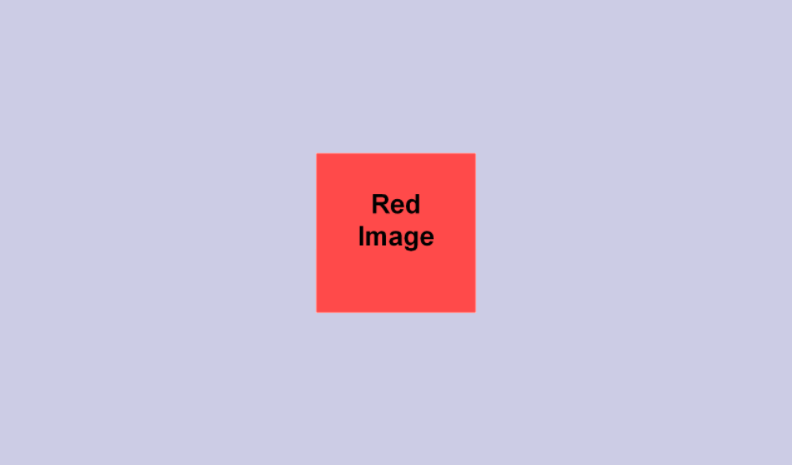

<Viewpoint description='Bottom view' orientation='1 0 0 1.57' position='0 -8 0'/>
</Scene>
</X3D>
<!--
